January 2020

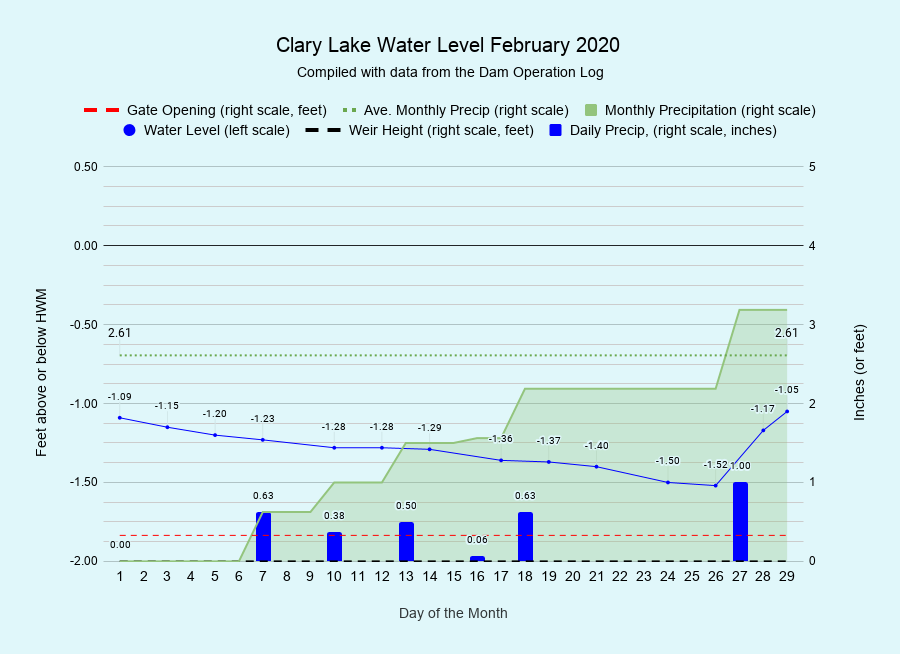

February 2020
March 2020
April 2020
May 2020
June 2020

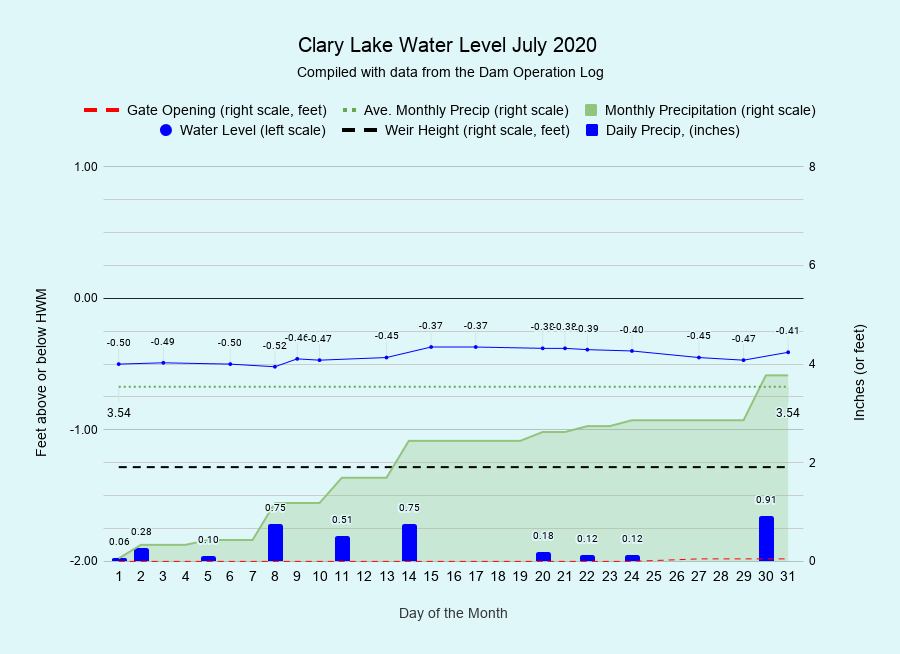

July 2020
August 2020
September 2020
October 2020

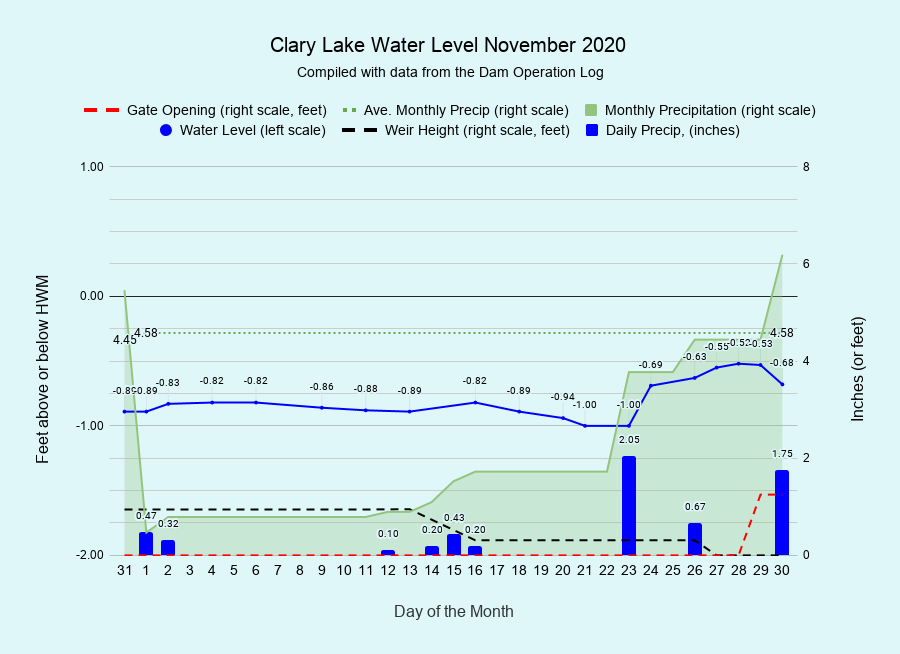

November 2020
December 2020
Clary's fluctuating water level throughout the year. Also shows the gate and weir status and precipitation.

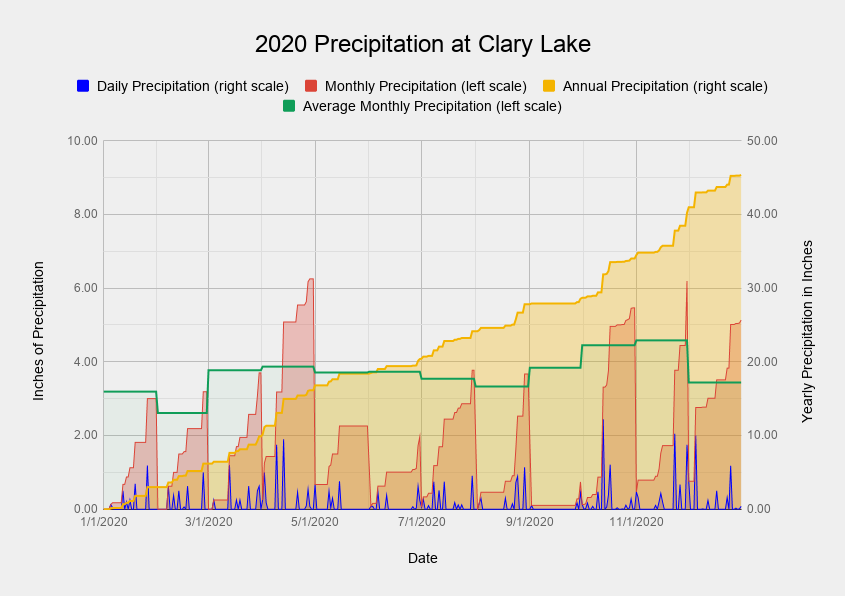

Precipitation data for 2020.
A cool chart showing Clary Lake inflows and Outflows throughout the year. You can see the effect of heavy precipitation in early Winter, during the spring, and in late Fall. Also interesting to note the relative quiet during July, August, and September.

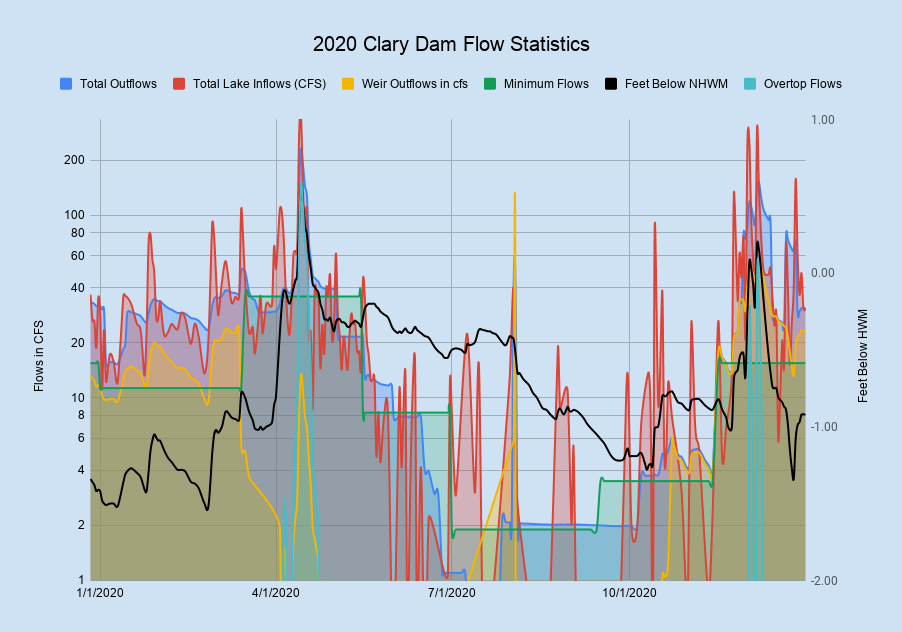

Flow statistics for the Clary Lake dam. Lots of data here, one could argue too much data on one chart. Oh well. It's one of my favorite charts simply because it's so colorful :)

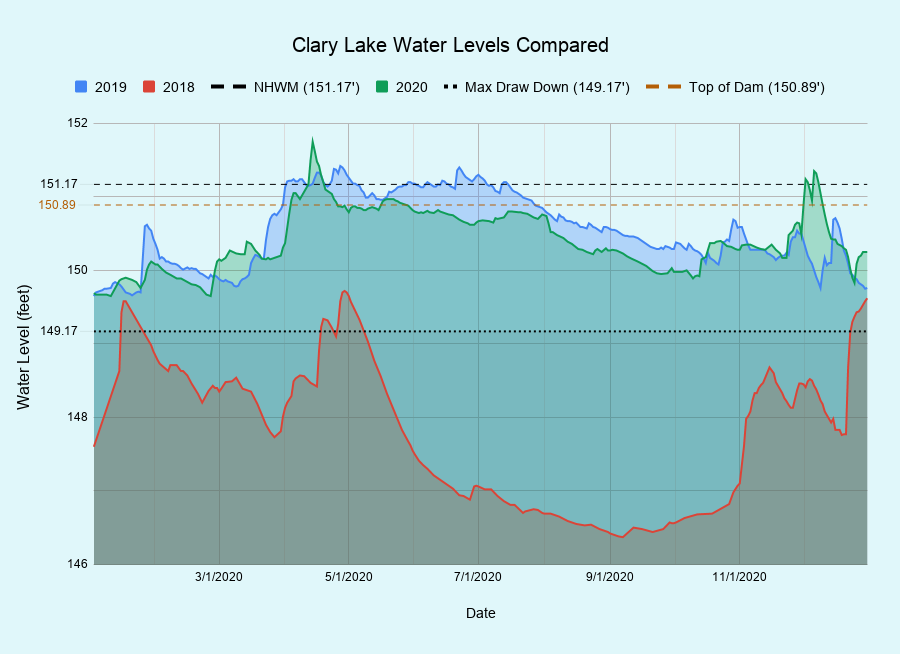

This chart shows a day-for-day comparison of 2018, 2019, and 2020 water levels. For the majority of 2018, Paul Kelley was in charge of the Clary Lake Dam. We bought it in mid October, had it repaired by late December and brought the lake level into compliance with the WLO by the end of December 2018. I probably won't be generating this chart any longer.

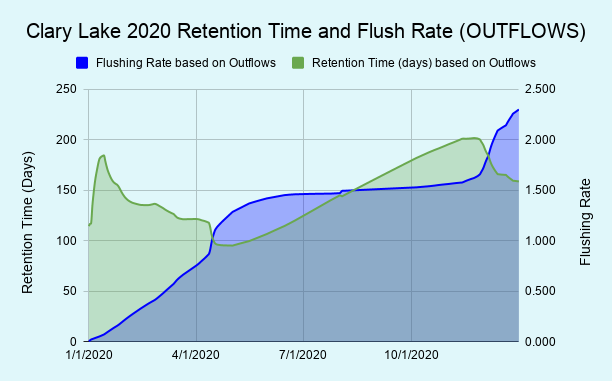

Clary Lake 2020 Retention Time and Flush Rate based on OUTFLOWS from the lake. Differs somewhat from the same statistics using INFLOW data because it doesn't include water that flowed into the lake but hasn't made it's way out yet...

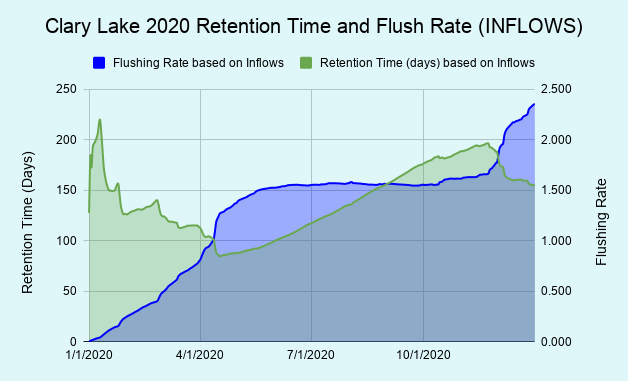

Clary Lake 2020 Retention Time and Flush Rate based on INFLOWS to the lake. Differs somewhat from the same statistics using OUTFLOW data because some of the water that flowed INTO the lake in 2019 is still in the lake...
Other links:
Current Month Water Level Chart
Chart showing Clary Lake water level variation from December 2011 through May 2019. This chart is no longer being produced.
